MaxiTPMS TS508
MaxiTPMS TS508
Advanced TPMS Service Tool
SOFTWARE UPDATES: The TS508WF performs updates via USB and Wifi. The TS508 performs updates via USB.

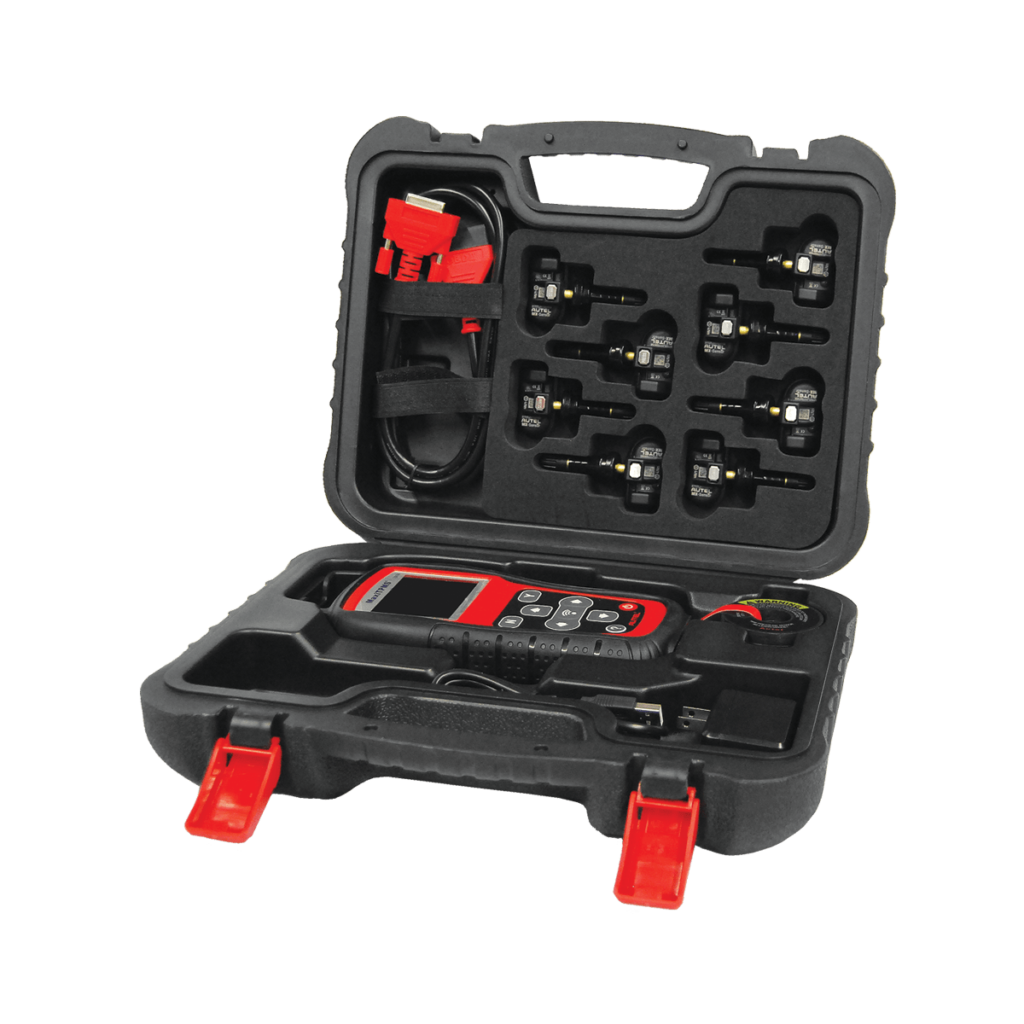

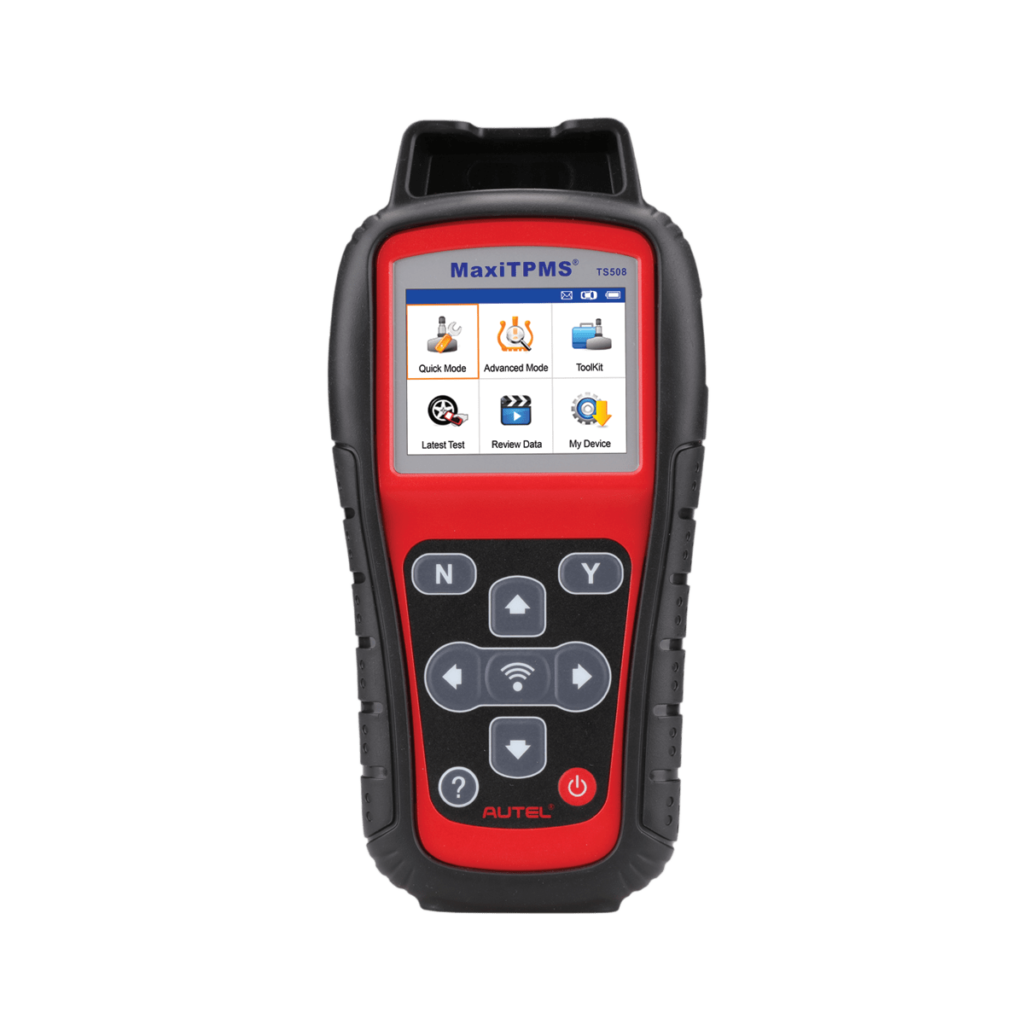

The TS508 is a TPMS service tool. It features Quick and Advance modes of TPMS service and a TPMS status screen. It can read/activate/relearn all known sensors, has two methods of MX-Sensor programming, and performs placard value resets on supported vehicles. The TS508 displays on-tool MX-Sensor relearn procedures including OBDII and can do key fob signal tests. It is updatable via PC and includes an OBDII cable. A 1-year tool warranty and free lifetime software updates are available with purchase.
Description
Description
- 2 Programming Options: MX-Sensors Only
- TPMS System Status Screen
- Quick Mode & Advanced Mode Options
- Read/Activate/Relearn All Known Sensors
- Detect & Display TPMS System Faults
- Read/Clear OBDII Codes & Sensor Info
- Display Vehicle-Specific Relearn Procedures/Perform OBDII Relearn
- Placard Value Reset on Supported Vehicles
- Key Fob Signal Test
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
- Display Sensor ID, Battery Condition (on select sensors) and Psi
- Includes OBDII Cable
- Software Updates via PC / Easy-To-Use Navigation
- 2.3″ Color Display 320×240
- 3200mAh Lithium-polymer Battery
Specifications
Specifications
| Display | TFT color display (320 x 240 dpi) |
| Power | 3.7 V Li-polymer battery; 3200 mAh |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions (LxWxH) | 215 mm (8.46″) / 105 mm (4.13″) / 37 mm (1.46″) |
| Weight | 0.39 kg (0.86 lb.) |
| Connectivity | Mini USB 2.0 x 1 |
| Warranty | 1 year |
| Software Update | Free |
